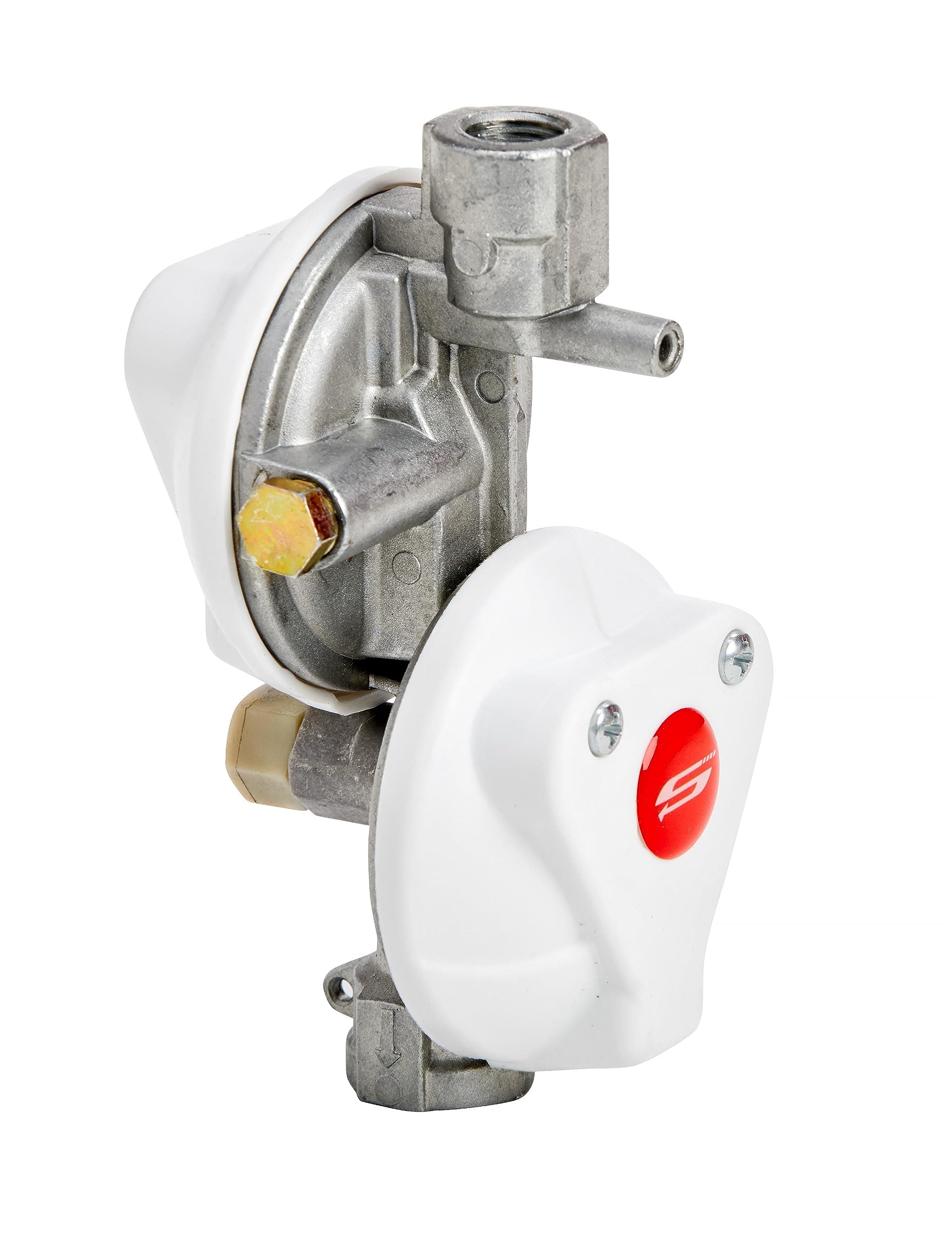

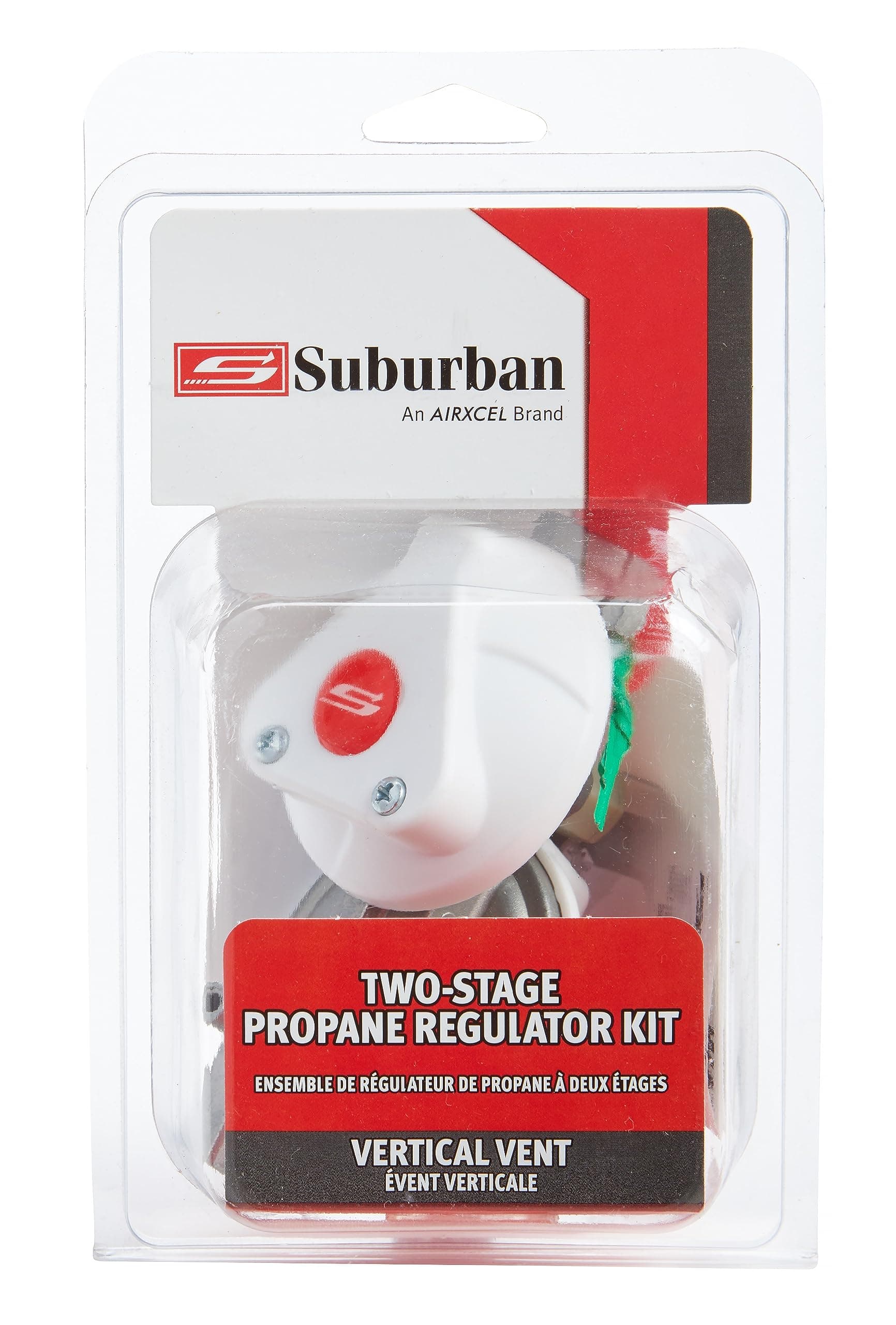

Suburban Two-Stage LP Regulator Kit | Vertical Vent, 160,000 BTU/Hr

This Suburban-brand regulator kit, sold under Dicor, controls propane pressure in two stages for a single horizontal or vertical LP tank: the first stage drops cylinder pressure to 10 psi, and the second stage holds a steady 11-inch water column for consistent appliance performance.

It's rated for up to 160,000 BTU/hour, enough to run a full slate of RV appliances off one tank. Safety features include an excess flow device that limits gas flow if a hose ruptures or disconnects, plus an overpressure protection device that shuts off flow and limits any propane release to under 2 psi in the event of a malfunction. The kit is UL listed.

• Two-stage regulation: 10 psi first stage, 11" water column second stage
• Rated up to 160,000 BTU/hour for single-tank RV setups
• Excess flow device limits gas flow on hose rupture or disconnection
• Overpressure protection shuts off flow and limits release to under 2 psi
• UL listed
• 1/4" FNPT inlet x 3/8" NPT outlet; includes RVIA-required vent covers

Designed as a direct replacement for a worn or failing single-stage or two-stage regulator on a vertical-vent LP setup.
