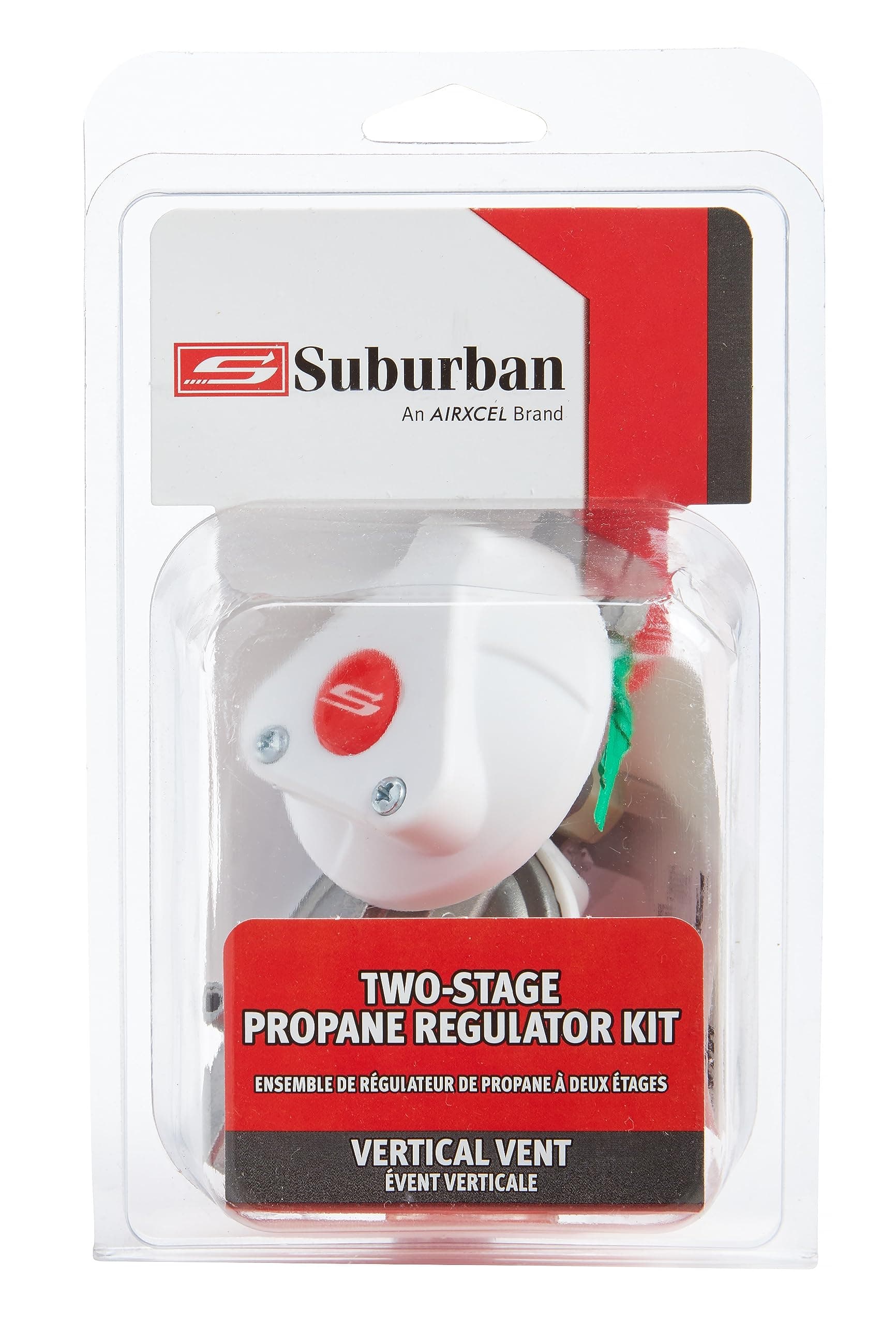

Suburban Two-Stage LP Gas Regulator Kit | Vertical Vent, 160,000 BTU/hr

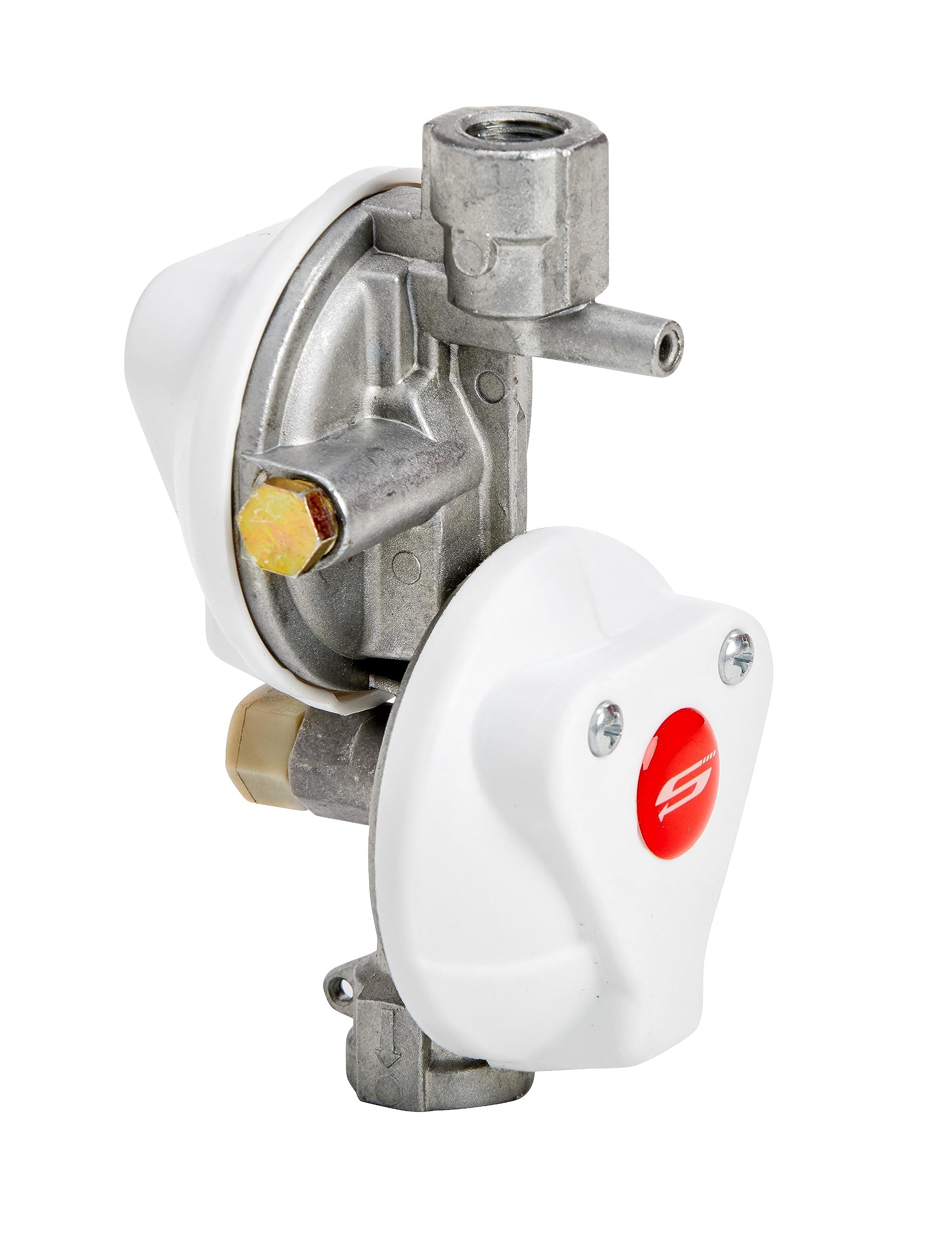

Running everything off a single-stage regulator can mean pressure swings as tank pressure drops, which shows up as inconsistent flame on the stove or furnace. Suburban's two-stage LP-R524V kit fixes that by reducing cylinder pressure to 10 psi in the first stage, then holding a steady 11" water column in the second stage regardless of tank level.

It's rated for up to 160,000 BTU/hr, enough to run appliances on a single horizontal or vertical tank setup, and includes an excess flow device that limits gas flow if a hose ruptures or disconnects. An overpressure protection device also shuts off flow if something malfunctions, and the kit is UL listed.

• Two-stage regulation: 10 psi first stage, 11" water column second stage
• Rated up to 160,000 BTU/hr
• Excess flow device limits gas flow on hose rupture or disconnection
• Overpressure protection device for added safety
• UL listed
• 1/4" FNPT inlet, 3/8" FNPT outlet, includes RVIA-required vent covers

Built for single horizontal or vertical propane tank setups with a vertical vent configuration - confirm your existing vent orientation before ordering.
