RV Ball Mounts & Hitch Balls
For any bumper-pull trailer, the ball mount and hitch ball are the actual link between your receiver and the trailer coupler — and both have to match the numbers, not just look close. This category covers hitch balls in the common 2" and 2-5/16" sizes from Draw-Tite, Buyers Products, Curt, and Equal-i-zer, ball mounts in various drops, plus receiver reducer sleeves. Get the ball size, drop, shank, and capacity right and the trailer rides level and latches clean.
136 products
Gen-Y Phantom-X Adjustable Hitch with Platinum Ball Mount | 2" Shank, 4.5" Drop, 7,000 lb
Buyers Products 30-Ton Forged 4-Bolt Pintle Drawbar, 3" I.D.
Buyers Products RV Universal Receiver Hitch | 2" Receiver for 4" Square RV Bumper
Buyers Products Tri-Ball Hitch with Pintle Hook, 2-1/2" Receiver
Buyers Products Tri-Ball Hitch with Pintle Hook, 2" Receiver
Buyers Products BH8 Combination Hitch with 2" Ball & Mount
Buyers Products 4-Position Adjustable Solid-Shank Ball Mount
Buyers Products 20-Ton Pintle Hook with Mounting Kit
Buyers Products 8-Ton Combination Hitch with 2" Ball
Buyers Products Tri-Ball Hitch for 2-1/2 Inch Receiver
2 options
Buyers Products 2-1/2" Forged Pintle Ring Drawbar
Buyers Products Tri-Ball Hitch with Recovery Hook, 2" Receiver
Draw-Tite Titan Tri-Ball Hitch Ball Mount | 1-7/8", 2", 2-5/16" Balls, 2-1/2" Hollow Shank, Black
Ultra-Fab Universal Bumper Hitch | Black, 3,500 lb Pull, 100 lb Tongue Weight
Torklift SuperHitch Trailer Ball, 2-5/16 in x 1-1/4 in Shank, 30,000 lb
Tyger Auto Class 3 Trailer Hitch & Cover Kit | 2" Receiver, 6,000 lb GTW, Fits 2003-2018 Ram 1500 / 2003-2014 Ram 2500/3500
Buyers Products Double Ball Mount, 2" & 2-5/16" Balls
Rear Receiver Hitch & Cover Kit for 2018-2026 Jeep Wrangler JL/JLU | 2 In., 3,500 Lb GTW
Buyers Products 10" Adjustable Class IV Ball Mount
Buyers Products Class III Tri-Ball Mount, Tubular Shank
Buyers Products Pintle Hook Mount | 3-Position, 14,000 lb MGTW, Fits 2" Receivers
CURT RockerBall Cushion Trailer Hitch Ball | 2-5/16" Ball, 1" Shank, 7,500 lbs GTW
Draw-Tite Forged Ball Mount | 9-1/4", 3" Rise / 4" Drop, 16,000 lbs. GTW

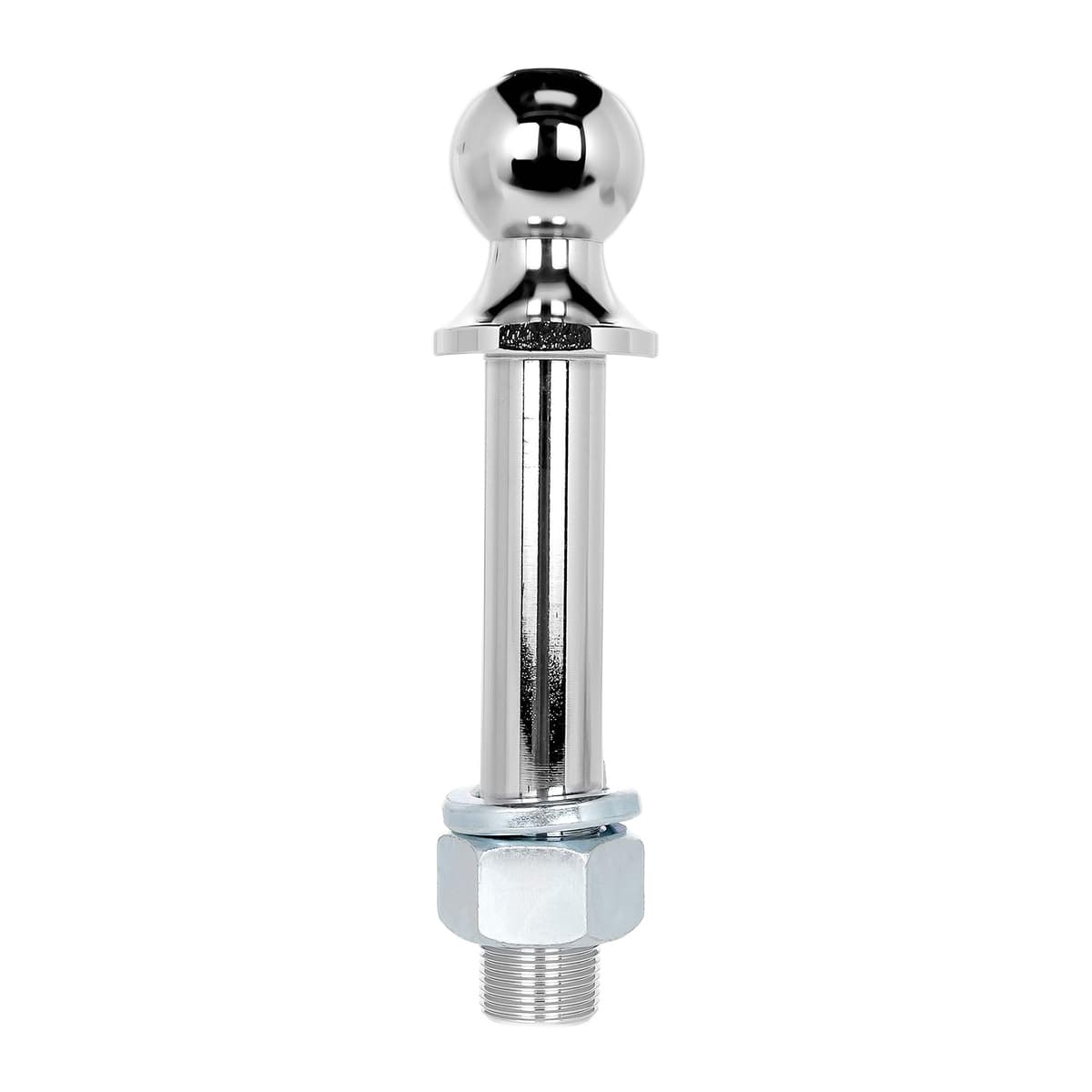

Eaz-Lift Chrome Hitch Ball | 2", 6,000 lb, 1-1/4" Shank
Buyers Products High-Low Ball Mount for 2-1/2 Inch Receiver
2 options
Eaz-Lift Reversible Ball Mount | 2" Receiver, 4" Drop / 2-3/4" Rise, 6,000 lb
Weigh Safe Stainless Steel Tow Ball | 1-7/8", 7,500 lb GTW, for True Tow WD Hitches
CURT RockerBall Cushion Hitch Trailer Ball | 2" Ball, 3/4" Shank, 3,500 lb
Draw-Tite Class II Ball Mount Drawbar | 4.75" Drop, 3,500 lb Capacity

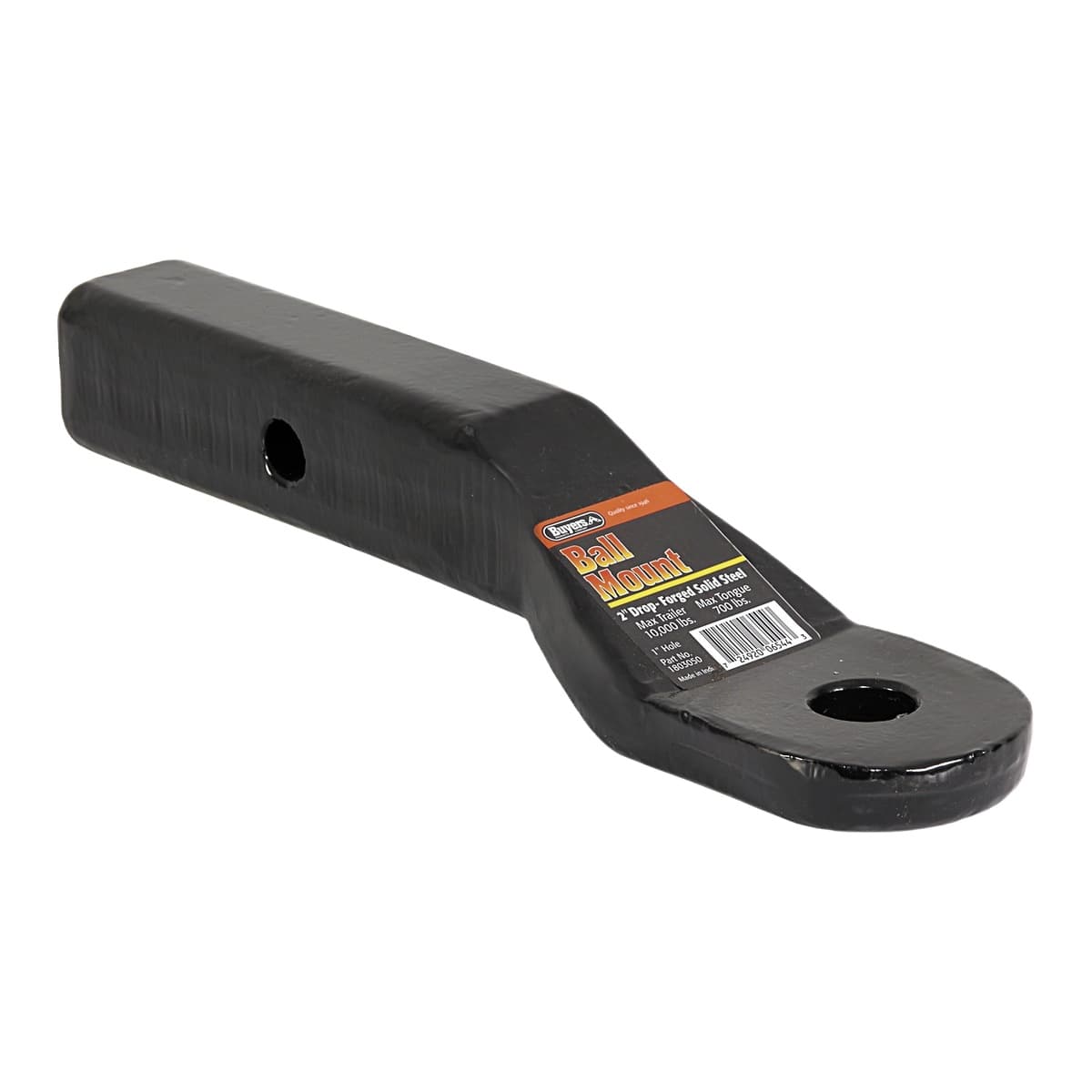

Buyers Products 2" Drop Forged Solid-Shank Ball Mount
Curt Raw Steel Trailer Hitch Ball | 2-5/16" Ball, 30,000 lb Capacity, 1-1/4" x 2-5/8" Shank
Draw-Tite 9-Inch Trailer Hitch Ball Mount | 2-Inch Receiver, 11-Inch Drop, 5,000 lb Capacity
Ball Mount | 2" Receiver, 4" Drop, 10,000 lb GTW

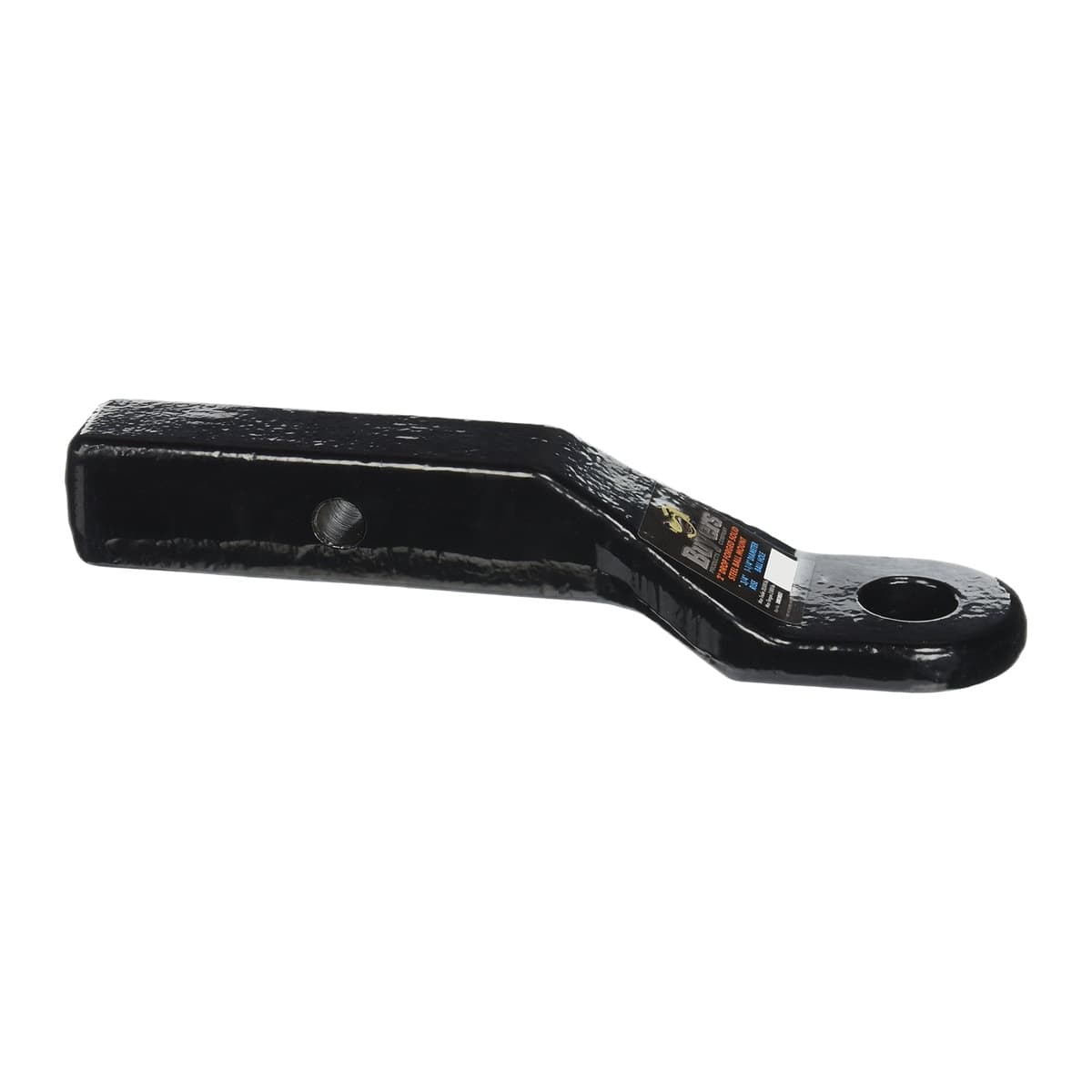

Buyers Products 2" Drop Class IV Solid Ball Mount, Black
Buyers Products RT25812 2" Weld-On Receiver Tube | 12" Shank, 5/8" Pin Hole
Equal-i-zer Hitch Ball | 2-5/16" Ball, 14,000 lb Capacity, 1-1/4" Shank
Equal-i-zer Hitch Ball & Shank | 2-5/16in Ball, 16,000 lb Rated
Draw-Tite 3592 Class I Drawbar Kit | 1-1/4" Receiver, Pin & Clip Included
Draw-Tite Class I Ball Mount Drawbar 2793 | 1-1/4" Receiver, 2.75" Rise, 2,000 lb
Draw-Tite Class II Ball Mount Drawbar | 3.125" Rise, Fits 1-1/4" Receiver, 3,500 lb Capacity
Sizing a ball mount and hitch ball
Four numbers decide whether a ball mount and ball are right: ball diameter, drop (or rise), shank size, and weight rating. Miss any one and you either can't latch the coupler, tow nose-high or nose-low, or overload the hardware. Here's what each does.
- Ball diameter. This has to match the trailer coupler stamped size — commonly 2" or 2-5/16". A 2" coupler will not lock onto a 2-5/16" ball, and forcing a mismatch is how trailers come off. Read the coupler stamp and match it exactly.
- Drop or rise. The drop sets tow height. You want the loaded trailer riding level, so measure from the receiver to the coupler and pick a drop that closes the gap. A 4" drop mount, flipped, becomes a rise for taller trailers.
- Shank size. The shank must match your receiver opening — 1-1/4" for Class I/II, 2" for Class III and up. A reducer sleeve, like the Buyers 2-1/2" to 2" adapter, lets a smaller shank run in a bigger receiver.
- Weight rating (GTW). The ball and mount each carry a gross trailer weight rating; use the lower of the two and stay under it. A 2" ball rated 10,000 lb and a 30,000 lb 2-5/16" ball are not interchangeable just because one costs less.
Once the ball's on, the trailer coupler still has to latch and lock, which is the job of the couplers and locks page. If you're pulling a heavier travel trailer, a plain ball mount may not be enough — look at the weight-distribution hitches to level and control sway.
