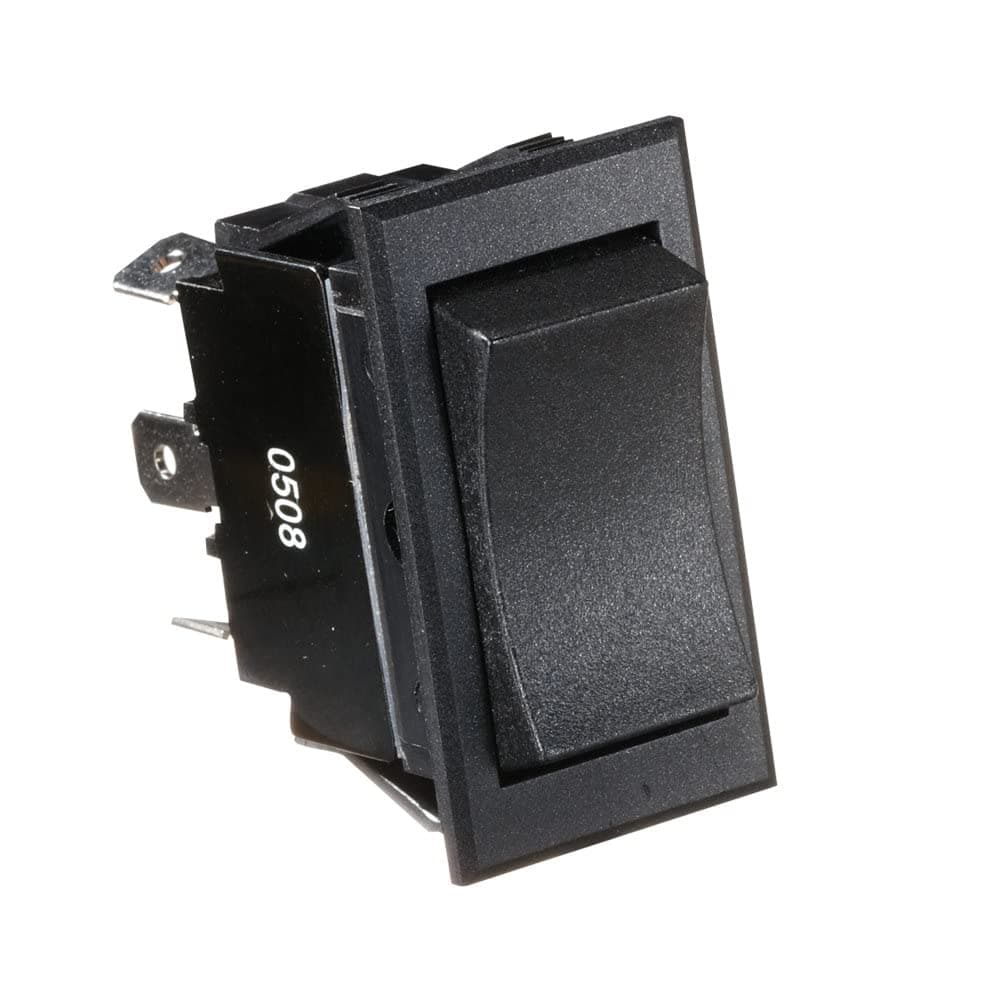

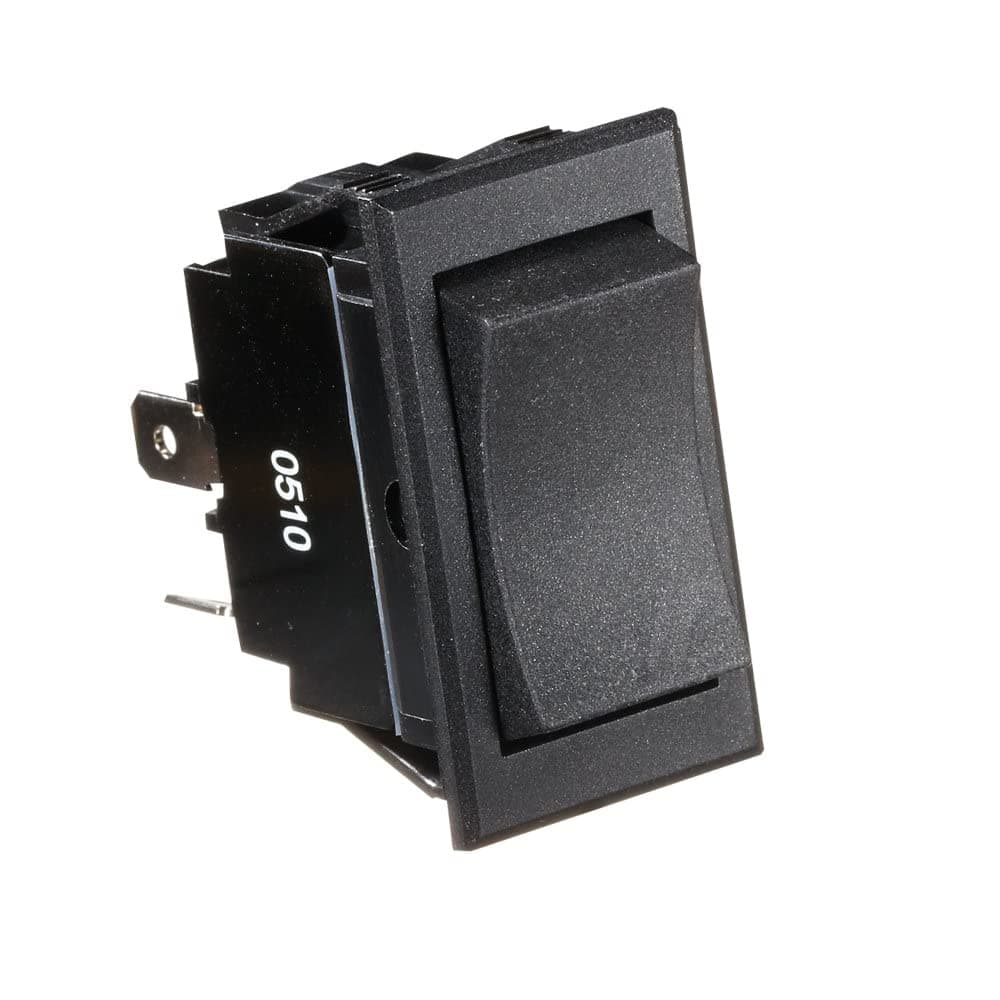

RV Designer Black Rocker Switch | 20A, 4-Terminal, DPDT, Momentary On/Off/Momentary On
RV Designer$26.99
- SKU:
- F002936
- MPN:
- S221
1
This item is currently out of stock.
Free shipping on orders over $75.00
30-day hassle-free returns
Secure checkout
This black rocker switch is built for the higher current draws of RV slide-out motors, power sofas, and generator start circuits. Its momentary on/off/momentary on action means it springs back to center when released, which is the standard wiring pattern for reversible DC motor controls.
The DPDT switch uses 4 terminals and mounts through a 1.46" x 0.83" panel cutout, matching the size used by many factory RV switch panels for direct replacement.
- Momentary On / Off / Momentary On switching action

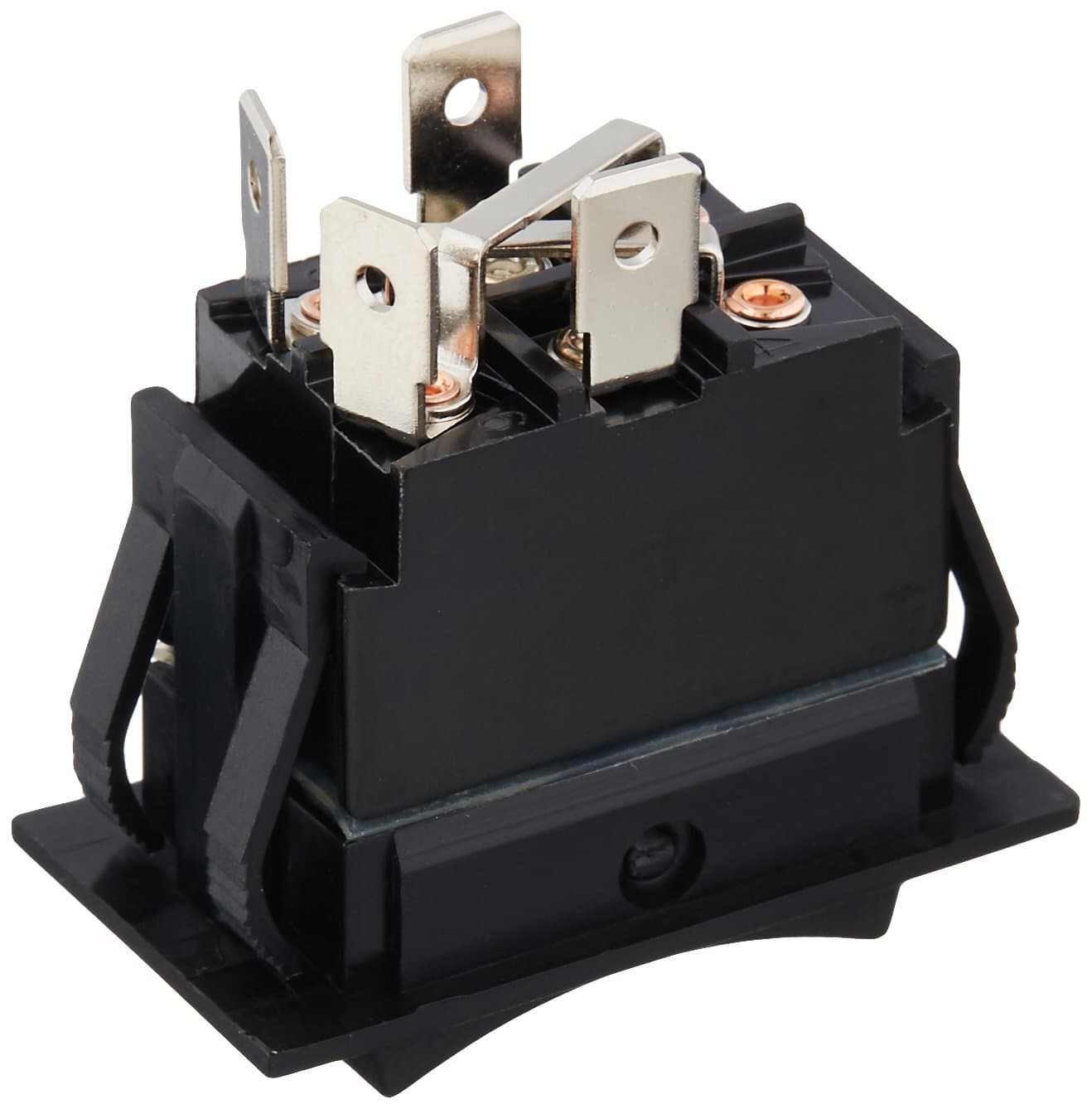

- DPDT (double-pole, double-throw), 4-terminal wiring
- Rated 20 amps for demanding DC loads
- Panel-mount rocker fits a 1.46" x 0.83" cutout
- Typical uses: slide-out rooms, power sofas, generators
Confirm your existing switch matches this cutout size and 4-terminal DPDT wiring before ordering, since panel switches vary between RV manufacturers.
