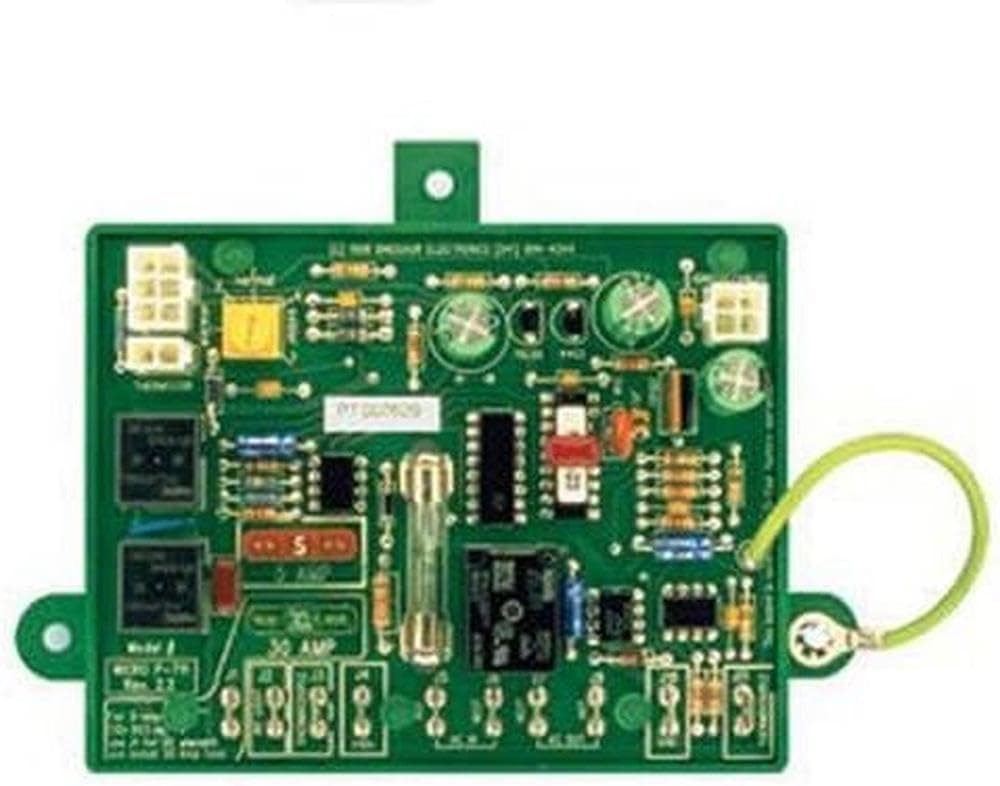

Dinosaur Electronics Refrigerator Control Board | Replaces Dometic 385071201

When a Dometic absorption refrigerator's original control board fails, this Dinosaur Electronics board is a drop-in replacement for the 3850712-xxx (and 3316348-xxx) black box boards. It includes a built-in igniter and is fuse protected.

The board supports both 2-way and 3-way refrigerator operation and adds a variable temperature adjustment for fixed-temperature models. If ignition fails to sense a flame, the check light comes on and the board repeats the 3-try ignition cycle every 30 minutes until it lights.

• Direct replacement for Dometic 3850712-xxx and 3316348-xxx control boards
• Built-in igniter with fuse protection
• Supports 2-way or 3-way refrigerator operation
• Repeats the 3-try ignition cycle every 30 minutes if no flame is sensed
• Variable temperature adjustment for fixed-temp refrigerator models
• Includes an easy-to-remove cover

Not a fit for 3850415-xxx boards or units starting with "293" - check your existing board's part number before ordering.
